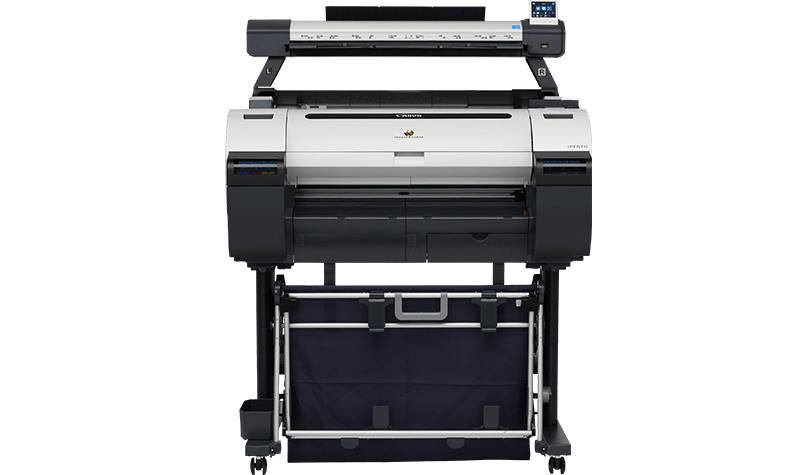

imagePROGRAF iPF670 MFP L24e
Specifications

SingleSensor with multiple LED illumination

600dpi.

COPY
300/300dpi Draft = 1inch/sec colour, 3inch/sec mono
300/600dpi Standard = 1inch/sec colour, 3inch/sec mono
600/600dpi Best = 0.5inch/sec colour, 1.5inch/sec mono

SCAN
200dpi Draft = 1inch/sec colour, 3inch/sec mono
300dpi Standard = 0.5inch/sec colour, 1.5inch/sec mono
600dpi Best = 0.33inch/sec colour, 1inch/sec mono

Scan to USB - RGB/Greyscale/BW, TIFF
Scan to PC - RGB/Greyscale/BW, Tiff, Jpeg, PDF, TiffG4
Copy - RGB/Greyscale/BW
Copy & Archive - RGB/Greyscale/BW, Tiff, Jpeg, PDF, TiffG4
Cloud connectivity is achieved by a link to Canon’s Direct Print & Share.
PRINT is achieved by using Canon’s Direct Print & Share.

Face up, rear exit. Forward document transport only.
Document return guide(s) included.

24" / 609.6mm

6.2" / 157.5mm

26" / 660.4mm

109" / 2768mm

Designed to scan Canon iPF printer CAD paper.
Min = 0.07mm
Max = 0.5mm

Accuracy 0.2% +/-1 pixel

Standard Network Mode:
(Prevents the scanner exceeding the network's data rate capability).
• Copy uses on-board memory as a buffer, then communicates with printer via Ethernet.
• Scan to USB uses on-board memory as a buffer, then saves TIFF files only.
• Scan to PC uses on-board memory as a buffer before sending data via Ethernet to the Scan App Le.

Plus Network Mode(default):
(Uses full network capability and Scan App Le to improve functionality & productivity).
• Copy sends data via Ethernet to the Scan App Le which acts as a print spooler to free up the scanner sooner.
• Scan to USB uses the Scan App Le to convert file type to PDF/JPG and setting the correct date before saving to the USB stick.
• Scan to PC sends data via Ethernet directly to the Scan App Le to free up the scanner sooner.

USB2, 128GB FAT32.

GB Ethernet. Scan App Le - Sets scan directory and file type.
Minimum PC specification: • Windows 7/8/10 - 32bit. • 100Mbs Ethernet. • Intel Celeron, Core-Duo, Core-2-Duo or 2.8GHz Hyper-Threading (HT) or AMD Dual-Core processors • 2GB RAM • High speed 7,200rpm Serial ATA (SATA) HDD with minimum 2GB for applications and 20GB free for images
Suggested PC specification: • Windows 7/8/10 - 64bit. • GB Ethernet. • Intel i3,i5 or i7 processors • 4GB RAM • SATA 6.0Gbit/sec USB3 on the motherboard and SATA 6.0Gbit 7,200 rpm HDD controller.

English/French/German/Italian/Spanish/Russian/Portuguese/Czech/Polish

Unique scanner model is only supported by Scan App Le only. Scanning cannot be started remotely.

3" touch screen display

5.28kg (11.6lbs) without Doc return guide

935mm

131mm

Without Doc Return Guide - Paper tray folded: 146mm
Without Doc Return Guide - Paper Tray flat: 193mm
With Doc Return Guide - Paper tray folded: 206mm
With Doc Return Guide - Paper Tray flat: 253mm

External PSU: Input: 100 - 240V, 50-60Hz
Output: 3.42A at 19V.

Standby (sleep): 0.6W
Idle: 11.7W
Scanning: 17.5W

Temp: 10-35C
Humidity: 10-90%

48.4dB gray scan

Energy Star
Europe : CE mark, Russia : EAC, Other countries : CB Certification

• Le scanner
• Printer mounting brackets, fixings & 3mm tool
• 2 feet for desktop use
• 2 paper edge guides & paper refeed preventers
• 1 Document return guide
• Calibration target
• CD for Scan App Le software (includes PDF documentation: Le Scanner User Manual and Icon Guide per language and Quick Start Guide)
• Le Scanner Quick Start Guide.
• Ethernet cable (2 meter)
• Power Supply
Regional - Mains power cord(s) (2 meter)

5 Colour - 24"/609.6mm

Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)

Total: 15,360 MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each colour

2,400 x 1,200 dpi

1,200 x 2 includes Non-firing nozzle detection and compensation system

0.02 mm

±0.1 % or less

4 Picoliter per colour

Bundled Starter Ink: C,M,Y,Bk, MBk 90ml
Sales Ink: C,M,Y,Bk, MBK 130ml

Dye/Pigment Reactive Ink
Dye: Cyan, Magenta, Yellow, Black
Pigment: 2 x Matte Black

Windows 32 bit – XP, Vista, 7, 8, 8.1, 10, Server 2003/2003R2, Server 2008
Windows 64 bit – Vista, 7, 8, 8.1, Server 2003/2003R2, Server 2008/2008R2, Server 2012/2012R2
Mac: OSX – 10.6.8 - 10.10.x

GARO (Graphic Arts language with Raster Operations), HP-GL/2, HP RTL

USB 2.0 High-Speed
IEEE 802.3 10base-T
IEEE 802.3u 100base-TX/Auto-Negotiation
IEEE 802.3ab 1000base-T/Auto-Negotiation
IEEE 802.3x Full Duplex
IEEE 802.3az EEE

0:28 min (Fast Economy Mode)
0:28 min (Fast Mode)
0:42 min (Standard Mode)

0:43 min (Fast Mode)
1:17 min (Standard Mode)
2:05 min (High Quality Mode)

256MB

N/A

Roll paper: 10"/254mm - 24"/609.6mm
Cut sheet: 8"/203.2mm - 24"/609.6mm

Roll Unit: 0.07 - 0.8mm
Top Loading Manual Feed: 0.07 - 0.8mm
Front Loading Manual Feed: 0.5 - 1.5mm

Roll: 203.2mm Cut Sheet: 279.4mm

Roll: 18m (varies according to the OS and application) Cut Sheet: 1.6m

150.0 mm

Roll Feed: One Roll, top loading, front output
Top Loading Manual Feed: One sheet, front output

10" (254 mm), B4 (257 mm), A3 (297 mm), Banner (300 mm), 14" (356 mm), A2 (420 mm), A2+/17" (432 mm), B2 (515 mm), A1 (594 mm), 24" (610 mm)

Main Unit: 997 (W) x 698 (D) x 507 (H) mm
(Excluding consumables and printer stand)
Main unit with a printer stand and basket open: 997 (W) x 887 (D) x 1,062 (H) mm
Main Unit with basket in extended position for flatbed stacking: 997 (W) x 1100 (D) x 1062 (H) mm
Main unit: 46.0 kg
Main Unit + Printer stand: 56.7 kg

Canon Printer Driver, Status Monitor/Print Monitor, Printer Driver ExtraKit – Free Layout and iR enlargement Copy, Printer Driver Optimization Module for AutoCAD, Media Configuration Tool, PosterArtist Lite (PC only), Print Plug-in for Microsoft® Office (PC only), Direct Print & Share, Custom Installer Creation Tool

AC 100 - 240 V (50-60 Hz)

Operation: 140W or less
Power off Standby: 0.5W or Less
Sleep mode Power Consumption: 5W or less
Time to enter sleep mode: Approx. 5 Minutes

15 - 30°C, 10 - 80 % (Condensation free)

Operation: 47 dB approx.
Standby: 35 dB or less
Accoustic Power: 6.4 Bels
Based on ISO 7779

Europe: CE mark, Germany: TUV, Russia: EAC, Other Countries: CB Certification

ENERGY STAR (WW), RoHS (EU), WEEE (EU), ErP Directive (Lot6, 26), China RoHS, Chemical Substances Regulation, Battery certification (EU, Japan, USA, China, Taiwan), Packing material Regulation（EU, USA, Korea)

1 x print head, 1 x set of starter ink tanks - (C, M, Y, BK, 2 x MBK) 90ml each, 3 inch core adapters, Set up guide, Basic guide, Manual CD-ROM, User software CD-ROM (Mac & Win), Carrying caution leaflet, A2 calibration sheet, Safety/Standard Environment leaflet, Media sample - sheets, PosterArtist Lite leaflet, PosterArtist Lite software CD-ROM, EU/UK Power Cord

Roll Holder Set: RH2-26
Stand/Basket: ST-27

Ink Tank: PFI-107: C, M, Y, BK, 2 x MBK (130 ml)
Print Head: PF-04
Maintenance

Maximum number of supported iPF printers = 15
Maximum number of PCs running Scan App Le = 15

Scanner is manufactured by Global Scanning in the United Kingdom
