TECHNOLOGY
Print technology
DigiDot® drop-on-demand, piezoelectric
Ink*
Water based dye, pigment and premium pigment, InkSafe™ technology¹
Drop sizes
Variable, 5 – 12 picoliter
Paper transport
Pinless, tight web, automatic tension control
Paper input
tight web unwinder (included in basic unit), optional stack infeed¹
Paper output
Open post-processing interface with Type1 connectivity, Optional Rewinder or stack outfeed
Print resolution
1200 dpi perceives image quality with multilevel at 100mpm, 600 x 480 dpi with multilevel at 127 mpm
Print speed A4 pages per minute
Single/Twin
324/648
505/1,010
675/1,350
857/1,714
Duty cycle million A4 per month
Single/Twin
2–10/5–21
4–16/7–33
5–22/10–44
6–28/12–56
PAPER
Print width
6.5"–21.25" (165–540 mm)
Page length
3"–60" (76–1520 mm)
Paper width
6.5"–22" (165–560 mm), optional stack infeed 6,5“ bis 19,5“ (165-495 mm)
Form length
internal stacker: 7”–14” (178–356 mm), stack height max. 300 mm
Paper weight
60–160 gr/m², optional stack infeed 64–120 gr/m²
Substrates
Preprinted, inkjet, laser and recycled newspaper
Reel shafts
70 mm, 3", 5" and 6"
PHYSICAL DATA
Length x Width (Single)
7,460 × 2,500 mm

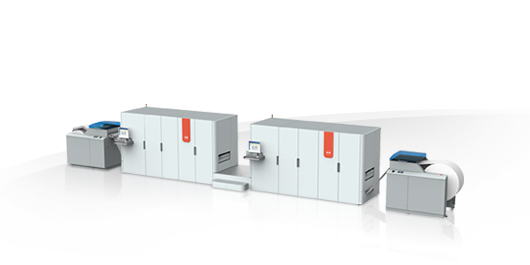

Length x Width (Inline Twin)
11,950 × 2,500 mm
Length x Width (L-Twin)
10,700 × 8,840 mm
Length x Width (H-Twin)
8,500 × 8,500 mm
Height
1,900 mm
Weight (Single)
2,500 kg
Weight (Twin)
5,300 kg
POWER CONSUMPTION
Consumption printing (EU) (Single/Twin)
20 kW / 32 kW
21 kW / 34 kW
23 kW / 38 kW
25 kW / 43 kW
Consumption idle (EU) (Single/Twin)
4 kW / 5 kW
4 kW / 5 kW
4 kW / 5 kW
4 kW / 5 kW
POWER CONNECTION REQUIREMENTS
Connection (EU)
400 V, 63 A
ENVIRONMENTAL
Temperature
Optimal range 20–26 °C, limited range 16–29 °C
Humidity
Optimal range 40–60%, limited range 40–80%
Operating noise
Maximum 75 dB
WORKFLOW
Controller
SRA MP high-performance blade processors
Printer data format**
AFP/IPDS (IS/3), PDF (APPE 3), Line Data, LCDS, PostScript, PPML, TIFF, VIPP
Print manager (optional)
PRISMAproduction®
Connectivity
Gigabit Ethernet (copper); 10 Gigabit Ethernet (copper, Optic MMF/SR, Optic SMF/LR)
Disclaimer
* ColorStream inks contain materials that may be considered a Volatile Organic Component. Please consult your local regulators for clarification and a possible obligation for permission
** Partly in combination with PRISMAproduction
Footnote
¹ Please contact your local sales representative for details
¹ Max. print speed with optional stack infeed 75 m/min or 505 A4/min
