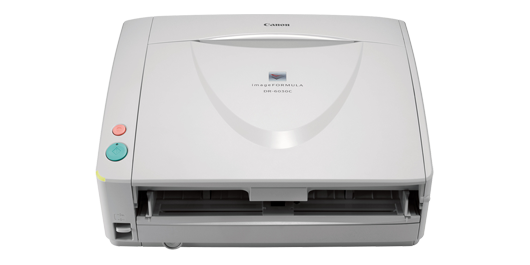

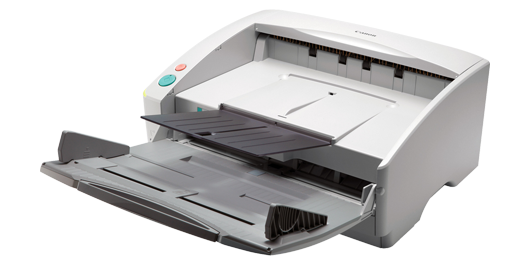

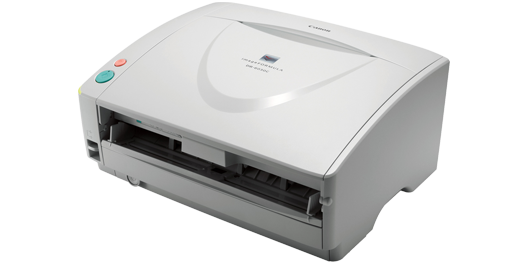

Canon imageFORMULA DR-6030C Specifications

GENERAL PRODUCT INFORMATION

Type

Desktop Type Sheet Fed Scanner

Scanning sensor unit

CMOS CIS 3 Line Sensor

Optical resolution

600dpi

Light source

RGB LED

Scanning side

Front / Back / Duplex

Interface

High speed USB 2.0 & SCSI-3

Dimensions (WxDxH)

Tray Closed: 398 (W) × 312 (D) × 191 (H) mm


Tray Opened: 398 (W) × 668 (D) × 194 (H) mm at U-turn path

Weight

Approx. 10.5 kg

Power requirements

AC220 - 240V (50/60Hz)

Power consumption

Scanning: 41.1W, Sleep Mode:3.7W, Power Turned Off: 0.04W

Operating environment

10 - 32.5°C (50 - 90.5°F), Humidity 20 - 80% RH

Environmental compliance

RoHS

SCANNING SPEED (200DPI)

Black and White

80ppm / 160ipm - Landscape speed

Colour

80ppm / 160ipm - Landscape speed

Output resolution

100 x 100dpi, 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi

Colour mode

B&W, Error Diffusion, High speed Text Enhancement, Advanced Text Enhancement, Advanced Text Enhancement II, 8-bit (256 level) Greyscale, 24-bit colour

Suggested Daily Duty Cycle

From 10,000 to 20,000 scans/day

Width

53 - 300mm

Length

70 - 432mm

Thickness

Separation On: (U-turn/Straight Through) 52 - 128g/m² (0.06 - 0.15mm)Separation Off: (U-turn) 42 - 157g/m² (0.05 - 0.20mm)(Straight Through) 42 - 546g/m² (0.05 - 0.66mm)

Long document mode

3000mm Max (Selectable in MS Windows control panel)

CARD SCANNING

Paper separation

Retard Roller

Feeder capacity

100 Sheets (80g/m²)

DOUBLE FEED DETECTION

Others

Deskew, Auto Page Size Detection, Skip Blank Page, Text Orientation Recognition, Preset Gamma Curve, Colour Dropout (RGB/Custom Colour) / Enhancement (RGB/Custom Colour), Erase Dot, Border Removal, Punch Hole Removal, Batch Separation, Edge Enhancement, Prescan, Scan Area Setting, MultiStream™, Patch Code, Separate Front/Back settings, Ultrasonic Double Feed Detection, User Registration

Windows

ISIS/TWAIN Drivers (Windows 2000/XP Pro/XP Home/Vista/7/8/10), Kofax VRS

CONSUMABLES

-

Exchange Roller Kit

Disclaimer

All data is based on Canon standard testing methods except where indicated.

Subject to change without notice.
