Type

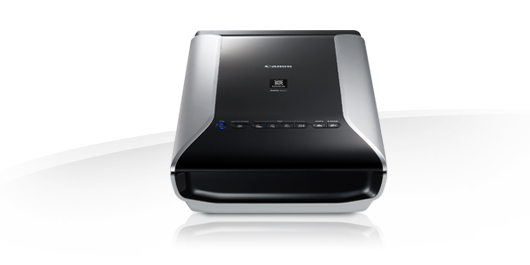

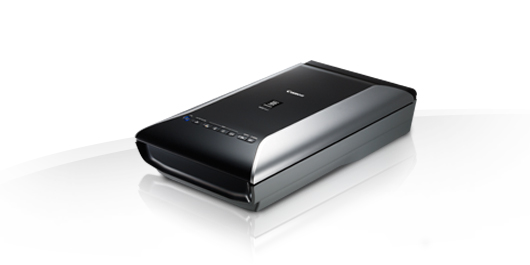

Flatbed Scanner with Film Adaptor Unit
Scanning element
CCD 12-line colour
Light source
White LED
Optical resolution
9600×9600dpi (film)¹
4800×4800dpi (photo and document)¹
Selectable resolution
25 - 19200dpi
Interface
Hi-Speed USB
Scanning gradation (colour)
48bit input -> 48/24 bit output
Scanning gradation (greyscale)
48 bit input -> 16 bit (Film scanning only) / 8 bit output
OPTICAL DENSITY
Maximum document size
A4 / Letter [216 x 297mm]
EZ-Scan Buttons
7 buttons (PDFx4, AUTO SCAN, COPY, E-MAIL)
Preview speed
Approx. 3 sec¹
Scanning speed (colour)
1.2 msec./line (300 dpi), 12.1 msec/line (4800dpi)¹
Scanning speed (greyscale)
1.2 msec./line (300 dpi), 12.1 msec/line (4800dpi)¹
Scanning speed (B&W)
1.2 msec./line (300 dpi), 12.1 msec/line (4800dpi)¹
Scan speed (A4, 300dpi, Colour)
Approx. 7 sec¹
FILM TYPES
Film Handling
35mm strip (negative/positive): 12 frames
35mm slides (negative/positive): 4 frames
120 format film max 6 x 22cm (filmstrip only)
DRIVER AND TOOLBOX FEATURES
Software included
ScanGear, Scan Utility, My Image Garden
Power supply
AC 100-240V, 50/60 Hz
Power consumption
Off: Approx. 0.5 W (suspend)
Standby (connected to PC via USB): Approx. 0.9 W (scanning lamp off)
Standby (all ports connected): Approx. 0.9 W (scanning lamp off)
Time to enter Standby mode: 1 minutes
Scanning: Approx. 15 W
Dimensions
approx. 270 x 480 x 111mm
Weight
approx. 4.6kg
Operating range (temperature)
10-35 degrees C
Operating range (humidity)
10% to 90% RH (20% to 80% RH for film scanning), without condensation formation
Supported Operating Systems
Windows 10 (32 and 64bit)
Windows 8 (32 and 64bit)
Windows 7 SP1 (32 and 64bit)
Windows Vista (32 and 64bit)
Windows XP SP3 (32bit)
Mac OS X 10.6.8 - 10.8
Disclaimer
All Specifications subject to change without notice
CanoScan and ScanGear are trademarks of Canon Inc. Microsoft, Windows, and the Windows logo are trademarks, or registered trademarks of Microsoft
All brand and product names are trademarks of their respective companies.
All Specifications subject to change without notice
CanoScan and ScanGear are trademarks of Canon Inc. Microsoft, Windows, and the Windows logo are trademarks, or registered trademarks of Microsoft
All brand and product names are trademarks of their respective companies.
Footnote
¹ Optical resolution is a measure of maximum hardware sampling resolution, based on ISO 14473 standard. When scanning in high resolution, the scan size is restricted (maximum optical resolution for A4 scan is 3800dpi).
¹ Pre-processing time is not included
¹ The fastest speed in Hi-Speed USB on Windows PC. Transfer time to computer is not included
¹ The fastest speed in Hi-Speed USB on Windows PC. Transfer time to computer is not included
¹ The fastest speed in Hi-Speed USB on Windows PC. Transfer time to computer is not included
¹ Colour document scan speed is measured with ISO/IEC 24735 Annex C Test Chart A. Scan speed indicates the time measured between pressing the scan button of the scanner driver and the on-screen status display turns off. Scan speed may vary depending on system configuration, interface, software, scan mode settings and document size etc.
¹ Optical resolution is a measure of maximum hardware sampling resolution, based on ISO 14473 standard. When scanning in high resolution, the scan size is restricted (maximum optical resolution for A4 scan is 3800dpi).
¹ Pre-processing time is not included
¹ The fastest speed in Hi-Speed USB on Windows PC. Transfer time to computer is not included
¹ The fastest speed in Hi-Speed USB on Windows PC. Transfer time to computer is not included
¹ The fastest speed in Hi-Speed USB on Windows PC. Transfer time to computer is not included
¹ Colour document scan speed is measured with ISO/IEC 24735 Annex C Test Chart A. Scan speed indicates the time measured between pressing the scan button of the scanner driver and the on-screen status display turns off. Scan speed may vary depending on system configuration, interface, software, scan mode settings and document size etc.
