IMAGE SENSOR
Type
1.0 type back-illuminated CMOS
Effective Pixels
Approx. 20.1M (Aspect ratio 3:2) ¹
Effective / Total Pixels
Approx. 20.9M
Colour Filter Type
Primary Colour
IMAGE PROCESSOR
Type
DIGIC 7
LENS
Focal Length
8.8 – 36.8 mm (35 mm equivalent: 24 – 100 mm)
Zoom
Optical 4.2x
ZoomPlus 8.4x
Digital Approx. 4x (with Digital Tele-Converter approx. 1.6x or 2.0x ¹)
Combined approx. 17x
Maximum f/number
f/1.8-f/2.8
Construction
11 elements in 9 groups (1 double sided aspherical lens, 1 single sided aspherical UA lens, 1 single sided aspherical lens and 1 UD lens)
Image Stabilisation
Yes (lens shift-type), approx. 4-stop ¹.
Intelligent IS with 5-axis Advanced Dynamic IS & Auto Level
FOCUSING
Type
TTL
AF System/ Points
AiAF (31-point, Face Detection or Touch AF with Object and Face Select and Track), 1-point AF (any position is available or fixed centre)
AF Modes
Single, Continuous, Servo AF/AE ¹, Touch AF
AF Point Selection
Size (Normal, Small)
AF Lock
Yes, via customisable buttons
AF Assist Beam
Yes
Manual Focus
Yes, plus MF Peaking
Focus Bracketing
Yes
Closest Focusing Distance
5 cm (Wide) from front of lens
40 cm (Tele) from front of lens
EXPOSURE CONTROL
Metering modes
Evaluative (linked to Face Detection AF frame), Centre-weighted average, Spot
AE Lock
Yes
Exposure Compensation
+/- 3 EV in 1/3 stop increments
Auto Lighting Optimizer
ND Filter (3-stop) On / Auto / Off ¹
AEB
1/3 – 2 EV in 1/3 stop increments
ISO sensitivity
125, 160, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400, 8000, 10000, 12800 ¹
AUTO ISO: 125 - 12800 (possible to set Max. ISO speed and rate of change)
SHUTTER
Speed
1 – 1/2000 s (factory default)
1/8 - 1/2000 s (Movie Mode)
BULB, 15 – 1/2000 s (total range – varies by shooting mode) ¹
WHITE BALANCE
Type
TTL
Settings
Auto (including Face Detection WB), Daylight, Shade, Cloudy, Tungsten, Fluorescent, Fluorescent H, Flash, Underwater, Kelvin Settings, Custom 1, Custom 2
White Balance Compensation
White Balance Compensation in Underwater mode Colour adjustment in Star mode
COLOUR MATRIX
Type
sRGB
LCD MONITOR
Monitor

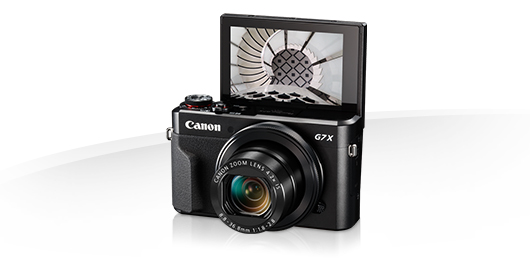

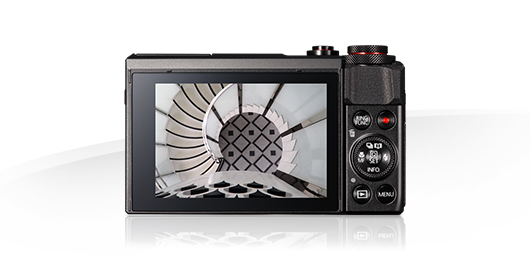

Tilt type 7.5 cm (3.0”) Touchscreen LCD (TFT). 3:2 aspect ratio. Approx. 1,040,000 dots. Capacitive type, sRGB colour reproduction
Coverage
Approx. 100%
Brightness
Adjustable to one of five levels.
Night Display Mode available
FLASH
Modes
Auto, Manual Flash On / Off, Slow Synchro
Slow Sync Speed
Yes. Fastest speed 1/2000 s
Red-Eye Reduction
Yes
Flash Exposure Compensation
+/- 2 EV in 1/3 stop increments. Face Detection FE, Safety FE
Flash Exposure Lock
Yes
Manual Power Adjustment
3 levels with internal flash
Second Curtain Synchronisation
Yes
Built-in Flash Range
50 cm – 7.0 m (W) / 40 cm – 4.0 m (T)
External Flash
Canon High Power Flash HF-DC2
SHOOTING
Modes
Smart Auto (58 scenes detected), Program AE, Shutter priority AE, Aperture priority AE, Manual, Custom, Hybrid Auto, SCN (Portrait, Self-Portrait, Panning, Star (Star Portrait, Star Nightscape, Star Trails, Star Portrait, Star Time-Lapse Movie), Handheld Night Scene, High Dynamic Range, Oil Painting Effect, Water-Painting Effect, Miniature Effect, Toy Camera Effect, Background Defocus, Soft Focus, Grainy B/W, Underwater, Fireworks), Standard Movie, Short Clip, Manual Movie, Time-Lapse Movie, iFrame Movie
Photo Effects
Picture Styles (Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined x3 (Sharpness (Strength, Fineness, Threshold), Contrast, Color Saturation, Color Tone, Filtering Effect, Toning))
Drive modes
Single, Auto Drive, Continuous, Continuous with AF, Self-Timer
Continuous Shooting
Approx. 8.0 shots/s for up to 19 frames in RAW and 30 frames in JPEG
with AF: Approx. 5.4 shots/s for up to 46 frames in JPEG
¹²
RECORDING PIXELS / COMPRESSION
Image Size
3:2 - (RAW, L) 5472 x 3648, (M) 3648 x 2432, (S1) 2736 x 1824, (S2) 2400 x 1600
4:3 - (RAW, L) 4864 x 3648, (M) 3248 x 2432, (S1) 2432 x 1824, (S2) 2112 x 1600
16:9 - (RAW, L) 5472 x 3072, (M) 3648 x 2048, (S1) 2736 x 1536, (S2) 2400 x 1344
1:1 - (RAW, L) 3648 x 3648, (M) 2432 x 2432, (S1) 1824 x 1824, (S2) 1600 x 1600
In-camera RAW processing & Resize available
Compression
RAW, Fine, Normal
Movies
(Full HD) 1920 x 1080, 59.94 / 50 / 29.97 / 25 / 23.98 fps
(HD) 1280 x 720, 29.97 / 25 fps
(L) 640 x 480, 29.97 / 25 fps
Movie Length
(Full HD & HD) Up to 4 GB or 29 min 59 s ¹
(L) Up to 4 GB or 1 hour ²
FILE TYPES
Still Image Type
JPEG compression (Exif 2.3 [Exif Print] compliant) / Design rule for Camera File system and DPOF ver. 1.1 compliant), RAW (14bit, Canon original RAW 2nd edition), RAW+JPEG
Movies
MP4 [Video: MPEG-4 AVC / H.264, Audio: MPEG-4 AAC-LC (stereo)]
iFrame
DIRECT PRINT
Canon Printers
Canon SELPHY Compact Photo Printers and Canon Inkjet Printers supporting PictBridge
PictBridge
Yes (via USB or Wireless LAN)
OTHER FEATURES
GPS
GPS via Mobile (linked to a compatible smartphone)
Red-Eye Correction
Yes, during shooting and playback
My Camera / My Menu
My Menu customisation available
Intelligent Orientation Sensor
Yes
Histogram
Yes
Playback zoom
Yes
Self Timer
Approx. 2, 10 s or Custom
Menu Languages
English, German, French, Dutch, Danish, Finnish, Italian, Greek, Norwegian, Portuguese, Russian, Swedish, Spanish, Ukrainian, Polish, Czech, Hungarian, Turkish, Simplified Chinese, Chinese (traditional), Japanese, Korean, Thai, Arabic, Romanian, Farsi, Hindi, Malay, Indonesian, Vietnamese, Hebrew
INTERFACE
Computer
Hi-Speed USB dedicated connector (Micro-B compatible)
Other
HDMI Micro (Type-D) Connector
Computer/Other
Wi-Fi (IEEE802.11b/g/n), (2.4 GHz only), with Dynamic NFC support ¹
MEMORY CARD
Type
SD, SDHC, SDXC (UHS Speed Class 1 compatible)
SUPPORTED OPERATING SYSTEM
PC & Macintosh
Windows 10 / 8.1 / 8 / 7 SP1 ¹
Mac OS X 10.9 / 10.10 / 10.11
For Wi-Fi connection to a PC:
Windows 10 / 8.1 / 8 / 7 SP1
Mac OS X 10.9 / 10.10
For Image Transfer Utility:
Windows 10 / 8.1 / 8 / 7 SP1
Mac OS X 10.9 / 10.10 / 10.11
SOFTWARE
Other
CameraWindow DC
Map Utility
Image Transfer Utility
Camera Connect app available on iOS and Android devices
Image Manipulation
Digital Photo Professional for RAW development
POWER SOURCE
Batteries
Rechargeable Li-ion Battery NB-13L (battery and charger supplied)
Battery life
Approx. 240 shots
A/C Power Supply
Charging via USB available with Compact Power Adapter CA-DC30E ¹ or other typical USB charging methods
ACCESSORIES
Cases / Straps
Soft Case DCC-1880
PowerShot Accessory Organizer
Waterproof / Weatherproof Case
Waterproof Case (40m) WP-DC55
Flash
Canon High Power Flash HF-DC2
Power Supply & Battery Chargers
Compact Power Adapter CA-DC30E
Battery Charger CB-2LHE
Rechargeable Li-ion Battery NB-13L
Other
Interface cable IFC-600PCU
PHYSICAL SPECIFICATIONS
Operating Environment
0 – 40 °C, 10 – 90% humidity
Dimensions (WxHxD)
105.5 x 60.9 x 42.0 mm
Weight
Approx. 319 g (including battery and memory card)
Disclaimer
All data is based on Canon standard testing methods (according to CIPA Standards) except where indicated. Subject to change without notice.
All data is based on Canon standard testing methods (according to CIPA Standards) except where indicated. Subject to change without notice.
Footnote
¹ Image processing may cause a decrease in the number of pixels.
¹ Depending on the image size selected.
¹ Values at maximum optical focal length. Cameras whose focal length exceeds 350 mm (35 mm equivalent) are measured at 350 mm.
¹ Some settings limit availability.
¹ Auto ND Filter not available in Movie Mode.
¹ ISO sensitivity denotes Recommended Exposure Index
¹ Maximum shutter speed is limited at 256 s in BULB Mode
¹ Under conditions where the flash does not fire.
² Sustained continuous shooting speed is tested based on Canon's testing standard. Function requires compatible SDHC/SDXC UHS Speed Class 1 memory card, total number of frames captured varies depending on shooting subject, settings and brand of memory card
¹ The following Speed Class memory cards are required for maximum record time: (HD) 1280 x 720 Speed Class 4 or above. (Full HD) 1920 x 1080 Speed Class 6 or above. (iFrame) 1280 x 720 Speed Class 6 or above.
² Depending on memory card speed / capacity / compression setting.
¹ Wi-Fi use may be restricted in certain countries or regions. Wi-Fi support varies by device and region. For more information visit www.canon-europe.com/wirelesscompacts
¹ Software applications compatible with Windows 10 in Windows 10 Desktop Mode only
¹ Charging via USB requires Interface Cable IFC-600PCU (Sold separately) or similar cable with USB Micro-B to USB type-A connectors. Charging time varies depending on the remaining battery power.
¹ Image processing may cause a decrease in the number of pixels.
¹ Depending on the image size selected.
¹ Values at maximum optical focal length. Cameras whose focal length exceeds 350 mm (35 mm equivalent) are measured at 350 mm.
¹ Some settings limit availability.
¹ Auto ND Filter not available in Movie Mode.
¹ ISO sensitivity denotes Recommended Exposure Index
¹ Maximum shutter speed is limited at 256 s in BULB Mode
¹ Under conditions where the flash does not fire.
² Sustained continuous shooting speed is tested based on Canon's testing standard. Function requires compatible SDHC/SDXC UHS Speed Class 1 memory card, total number of frames captured varies depending on shooting subject, settings and brand of memory card
¹ The following Speed Class memory cards are required for maximum record time: (HD) 1280 x 720 Speed Class 4 or above. (Full HD) 1920 x 1080 Speed Class 6 or above. (iFrame) 1280 x 720 Speed Class 6 or above.
² Depending on memory card speed / capacity / compression setting.
¹ Wi-Fi use may be restricted in certain countries or regions. Wi-Fi support varies by device and region. For more information visit www.canon-europe.com/wirelesscompacts
¹ Software applications compatible with Windows 10 in Windows 10 Desktop Mode only
¹ Charging via USB requires Interface Cable IFC-600PCU (Sold separately) or similar cable with USB Micro-B to USB type-A connectors. Charging time varies depending on the remaining battery power.
