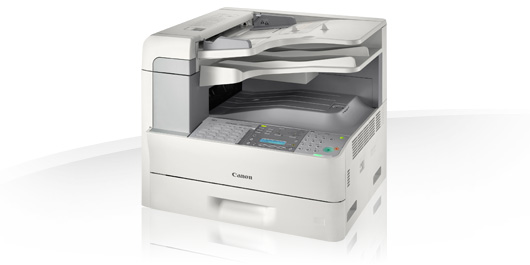

Canon i-SENSYS FAX-L3000IP Specifications

Type

Standalone facsimile with optional upgrades

Compatibility

Group 3

Applicable line

Public Switched Telephone Network (PSTN)

Modem speed

33.6K bps ( Super G3 )

Print technology

Laser beam printing

Scanner type

Duplex Sheet fed

Automatic document feeder

50 sheets (80 g/m² paper) A4, 20 sheets (80 g/m² paper) A3,

Document size

Max. 297 x 432 mm (Max. 630 mm)

Min. 148 x 148 mm (W x L)

Effective scanning width

A3(297mm)

Scanning speed

45 images per minute

Fax resolution

FINE: 203 pels/in. x 196 lines/in. (8 pels/mm x 7.7 lines/mm)

PHOTO: 203 pels/in. x 196 lines/in. (8 pels/mm x 7.7 lines/mm)

SUPER FINE: 203 pels/in. x 392 lines/in. (8 pels/mm x 15.4 lines/mm)

ULTRA FINE: 406 pels/in. x 392 lines/in. (16 pels/mm x 15.4 lines/mm)

STANDARD: 203 pels/in. x 98 lines/in. (8 pels/mm x 3.85 lines/mm)

Image processing system

UHQ (Ultra High Quality)

Halftone

256 greyscales

Printing method

Laser beam printing

Print speed

22 pages per minutes (A4)

Print resolution

600 x 600dpi, 1200 x 600 dpi (enhanced)

Smoothing

Yes 1200 x 600 dpi (enhanced)

Paper capacity

500 sheets paper cassette

Optional cassette

500 sheets paper cassette

Multifeeder

100 sheet auto sheet feeder

Print cartridge

Cartridge 714

Print cartridge yield

4500 pages (Based on 5 %)

Page collated print( on reception )

Yes (Face down print)

Paper output tray capacity

100 sheets (80 g/m² paper)

Printing width

216mm

Toner save mode

Yes

Auto image reduction on reception

Yes ( 100 to 50%, 70%)

Transmission speed

3 seconds per page with 33.6K bps modem*

Compression method

MH, MR, MMR, JBIG

Direct transmission

Yes

Memory transmission

Yes

Quick memory transmission

Yes

FAX memory

1500 pages*

Yes, approx. 3 hours

Memory backup

3 hour

Optional memory

Only as part of optional SEND kit

Memory reception

Yes

Dual access

Yes

Error correction mode(ECM)

Yes

Delayed transmission

Yes

Sequential broadcast

501 Locations

Polling Transmission

No

Reception

No

Sub-address transmission

No

Batch transmission

No

Error re-transmission

Yes

Relay broadcasting command

No

Relay broadcast

No

No. of boxes

No

Fax transfer

Yes

Fax retrieval( Bulletin board )

No

Password user restriction

Yes

Direct mail prevention

Yes

Confidential transmission

No

Confidential mail box

No

No. of boxes

No

Forced memory reception

Yes

System management password

Yes

Usage management by code

Yes

Reports

1-TOUCH LIST, CODED DIAL LIST, GROUP DIAL LIST, USER'S DATA LIST, DEPT. INFO LIST, ACTIVITY REPORT, TX/RX REPORT, FORWARDING CONDITIONS LIST

Transmission header

Yes

Reception footer

Yes

Verification stamp

Yes (Option)

One touch dials

80 Locations

Coded dials

420 dials

Group dials

499 dials

Program dial

Yes

Redial

Yes(Automatic and Manual)

Dial search

Yes

FAX/TEL auto switch

Yes

Answering machine hook up

Yes

Remote reception

Yes

On hook key

Yes

Hold key

No

Built in answering machine

No

Speaker phone

No

Caller ID

No

Telephone handset

option

Type

(Handset and Cradle) Tel 6

Memory copy

Yes

Direct copy

Yes

Copy resolution

600 x 600dpi

Copy speed (Mono)

22 copies per minute

Multiple copy

Up to 99 copies

Reduction

50%, 70%

Enlargement

141%,145%

Type

Backight LCD

Size

20 x 2

Languages

Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Romanian, Russian, Slovakian, Slovenian, Spanish, Swedish, Turkish

Internet FAX function (LAN type)

Yes

Energy saver key

Yes

Others

SEND functionality: Scan to FTP, SMB and E-mail. Universal SEND, Less than 13 secs FCOT, Less than 19 secs warm-up time from Power ON.

Dimensions without trays(Wx Dx H)

520 mm x 481 mm x 452 mm

Dimensions with trays(W x D x H)

520 mm x 481 mm x 580 mm

Installation space(with trays & handset)

1097 mm x 984 mm (W x D)

Weight

Approx. 24 Kg

Power source

AC 200-240V 50-60Hz

Power consumption

Max:1010w

Standby: 17W

Sleep: 3w, (3.5w with SEND kit)

Acoustic Noise Levels

Standby: under 25 dB(A)

Operation: under 66.7 dB(A)

Items

COLOUR SEND KIT M1

FXL-CST FEEDER 8(A4) – 500 sheet cassette

Tel 6- Telephone handset with cradle

Verification Stamp Unit

Printer type

Laser Beam Printing

Printer speed

22 pages per minutes (A4)

Interface

USB & Network Interface card

PDL

PCL 5e, PCL 6 & UFRII-LT

Memory

Standard: 128 MB(Shared)

Optional SEND kit includes 128MB DDR & 128MB USB memory

Print resolution

600 x 600dpi

1200 x 600 dpi (enhanced)

Smoothing

Yes: 1200 x 600 dpi (enhanced)

Toner save

Yes

Paper sizes

LTR, LGL, A4, B5, A5, Executive, Envelope (COM10, Monarch, DL,ISO-C5) TBC

Duplex (Option)

Yes built-in

Supplied Drivers

Print, PC Fax

Printer

Windows 98/ Me/ 2000/ XP/ Server 2003/ Vista

Mac OS X 10.2.8 to 10.5.x (Web distribution only)

Linux (Web distribution only& English driver only)

Fax

Windows 98/ Me/ 2000/ XP/ Server 2003/ Vista

Mac OS X 10.2.8 to 10.5.x (Web distribution only, TX only)

Type

Ethernet (10BaseT/100BaseT)

Connection type

RJ45

Network protocols

TCP/IP, IPX/SPX

Others

SEND: Scan to email, FTP, SMB and Internet Fax, Universal SEND, Remote User Interface

Canon's E-maintenance service compatiblity
