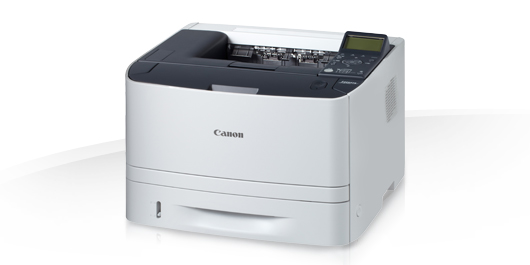

Canon i-SENSYS LBP6670dn Specifications


Print Speed

33 ppm mono (A4)

Printing Method

Monochrome laser beam printing

Print Quality

Up to 1200 x 1200 dpi

Print Resolution

600 x 600 dpi

Warm-up Time

Approx. 28 seconds or less from power on

First Page Out Time

Approx. 7 seconds

Duty Cycle

Max. 50,000 pages per month¹

Print Margins

5 mm-top, bottom, left and right


Paper Input (Standard)

250-sheet cassette

50-sheet multi-purpose tray

Paper Input (Option)

500-sheet cassette

Paper Output

150-sheet face down, 1 sheet face up

Media Types

Plain paper, Heavy Paper, Transparency,

Label, Index card, Envelope,Post card

Media Sizes

Cassette (Standard and optional)

A4, B5, A5, A6, LGL, LTR, EXECUTIVE, 16K,

Custom sizes (Width:105.0 to 215.9mm Length: 148.0 to 355.6mm)

Multi-purpose tray:

A4, B5, A5, A6, LGL, LTR, EXECUTIVE, 16K, Envelop COM-10, Monarch, DL, C5, B5(ISO), Index Card,

Custom sizes (Width: 76.2 to 215.9mm Length: 127.0 to 355.6mm)

Media Weights

Cassette (Standard and optional): 60 to 120 g/m¹

Multi-purpose tray: 60 to 163 g/m¹

Double Sided Printing

Automatic (Only A4/LTR/LGL)


Power Requirements

220-240V (±10%) 50/60Hz (±2Hz)

Power Consumption

Maximum: Approx. 1140 W or less

Active: Approx. 560 W

Standby: Approx. 14 W

Sleep: Approx. 14 W (Panel sleep), Approx. 1 W (Deep sleep)

Typical Electricity Consumption (TEC): 1.3kWh/week

Lot26 (

Noise Level

Sound power¹:

Active: 7.06 B or less

Standby: Inaudible

Sound pressure¹:

Active: 54.2 dB(A) or less

Standby: Inaudible

Dimensions (W x D x H)

400 mm x 376 mm x 289 mm (With Panel)


Approx. 12.4 kg

Operating Environment

Temperature: 10 to 30ºC (50 to 86ºF)

Humidity 20 to 80% RH (no condensation)

Control Panel

5 line LCD display

8 LED indicators

10 Operation keys



512 MB

Printer Languages

UFRII (Ultra Fast Rendering), PCL5e, PCL6, Adobe® PostScript Level 3 (optional)


45 PCL fonts, 136 PS fonts (optional)

Interface and Connectivity

USB 2.0 High-Speed, 10BASE-T/100BASE-TX/1000BASE-T


Operating Systems Compatibility

Windows 2000/ XP(32bit/64bit)/ Vista(32bit/64bit)/ 7(32bit/64bit)/ Server 2003(32bit/64bit)/ Server 2008 R2(64bit)/ Server 2008(32bit/64bit)/

Mac OS10.4.9 - 10.7.x¹/ Linux¹/ Citrix


All-in-One Cartridges

Standard: Cartridge 719 (2,100 pages¹)

High yield: Cartridge 719 H (6,400 pages¹)



PAPER FEEDER PF-44 (500-sheet cassette)

PS Printing Kit -AQ1 (Adobe PostScript 3 ROM module)¹

Barcode Printing Kit - F1 (Barcode ROM module)¹


All specifications subject to change without notice


¹ Duty cycle is defined as the maximum number of printed pages for a single peak month. Any usage above the recommended duty cycle may decrease the life of the product

¹ Web distribution only

¹ Declared noise emission in accordance with ISO 9296

¹ Web distribution only

¹ Based on ISO/IEC 19752

¹ Barcode ROM and PS ROM cannot be installed simultaneously
