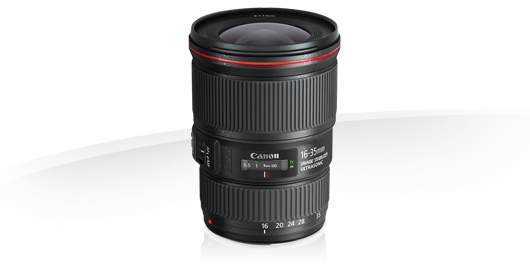

Canon EF 16-35mm f/4L IS USM Specifications

OPTICAL FEATURES/SPECIFICATIONS

Angle of view (horzntl, vertl, diagnl)

98° - 54°,


74°10′ - 38°,


108°10′ - 63°

Lens construction (elements/groups)

16/12

No. of diaphragm blades

9

Minimum aperture

22

Closest focussing distance (m)

0.28

Maximum magnification (x)

0.23x (at 35mm)

Distance Information

Yes

Image stabilizer*

4.0

AF actuator

Ring USM¹

PHYSICAL SPECIFICATIONS

Dust/moisture resistance**

Yes

Filter diameter (mm)

77

Max. diameter x length (mm)

82.6 x 112.8

Weight (g)

615

ACCESSORIES

Lens cap

E-77 II

Lens hood

EW-82

Lens case/pouch

LP1219

Rear cap

Lens Dust Cap E

Magnification w/ Extension Tube EF12 II

0.63-0.36¹

Magnification w/ Extension Tube EF25 II

1.12-0.80¹

Extender Compatiblity

Not Compatible

Other Accessories

Close-up lens 500D, tele only - 0.07 to 0.28x


Gelatin Filter Holder IV for full telephoto only

SPECIFICATIONS WITH EF 1.4X II

SPECIFICATIONS WITH EF 2X II

Disclaimer

* Tested under CIPA standards

** Lenses with dust/moisture resistance are fitted with a rubber ring on the lens mount which may cause sligth abrasion of the camera mount.

This in no way effects either the lens or camera performance.

* Tested under CIPA standards

** Lenses with dust/moisture resistance are fitted with a rubber ring on the lens mount which may cause sligth abrasion of the camera mount.

This in no way effects either the lens or camera performance.

Footnote

¹ Full time Manual focus

¹ Not Compatible at wide angles

¹ Not Compatible at wide angles

¹ Full time Manual focus

¹ Not Compatible at wide angles

¹ Not Compatible at wide angles
