Lenses for EOS M

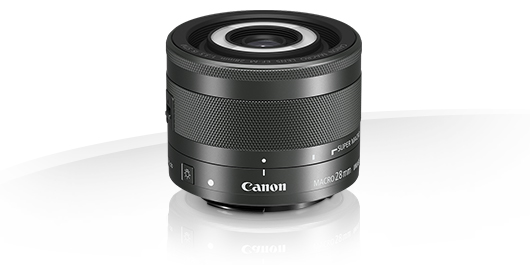

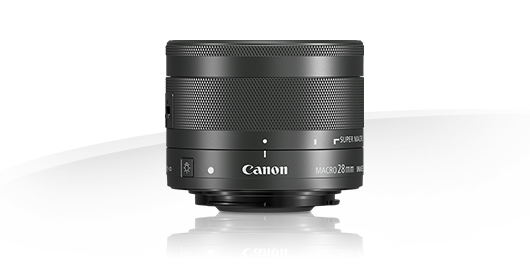

Canon EF-M 28mm f/3.5 Macro IS STM

Specifications

Specifications in detail

Optical Features / Specifications

  • 35mm Film Equivalent Focal Length (mm)

    Approx. 44.8

  • Angle of View (Horizontal, vertical, diagonal)

    44°10', 30°10', 51°55'

  • Lens Construction (Elements/Groups)

    11/10

  • Number of Diaphragm Blades

    7 (Circular)

  • Minimum Aperture

    22

  • Closest Focusing Distance (m)

    0.097 (Normal), 0.093 (Super Macro mode)

  • Maximum Magnification (x)

    1 (Normal), 1.2 (Super Macro mode)

  • Distance Information

    Yes

  • Image Stabilizer OIS1

    Hybrid IS, upto 3.5 stops correction

  • AF Actuator

    STM

Accessories

  • Lens Cap

    EF-M28 (Supplied in box)

  • Lens Hood

    ES-22 (Supplied in box)

  • Lens Case/Pouch

    LP811

  • Rear End Cap

    Lens Dust Cap EB (Supplied in box)

  • Extender Compatibility

    Not Compatible

Physical Specifications

  • Filter Diameter (mm)

    43 (attaches to ES-22 Lens Hood)

  • Max. Diameter x Length (mm)2

    60.9 x 45.5¹

  • Weight (g)

    130

¹ Dimension measured when lens is retracted

¹ Dimension measured when lens is retracted

  1. Tested under CIPA standards
  2. Lens dimensions when in retracted state
